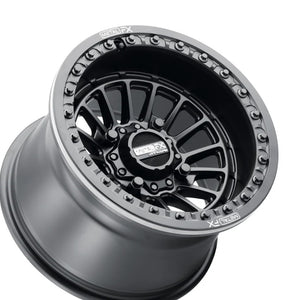

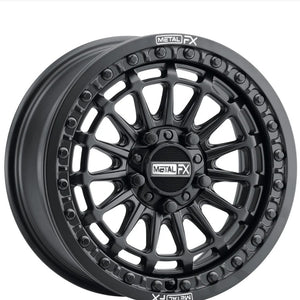

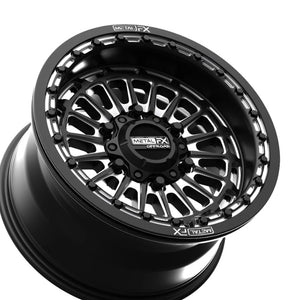

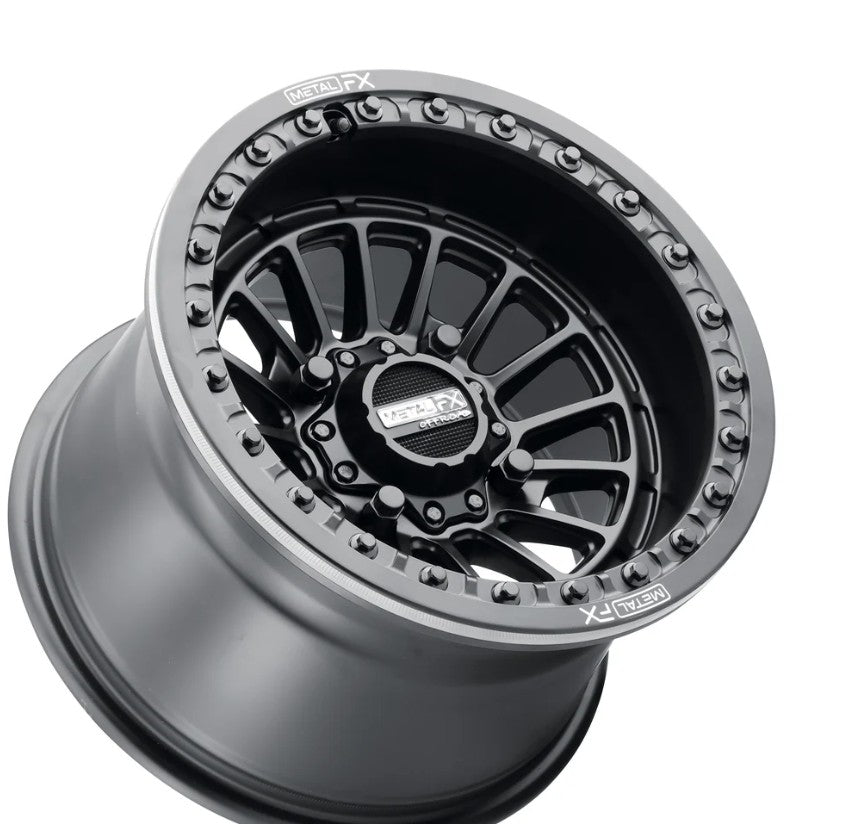

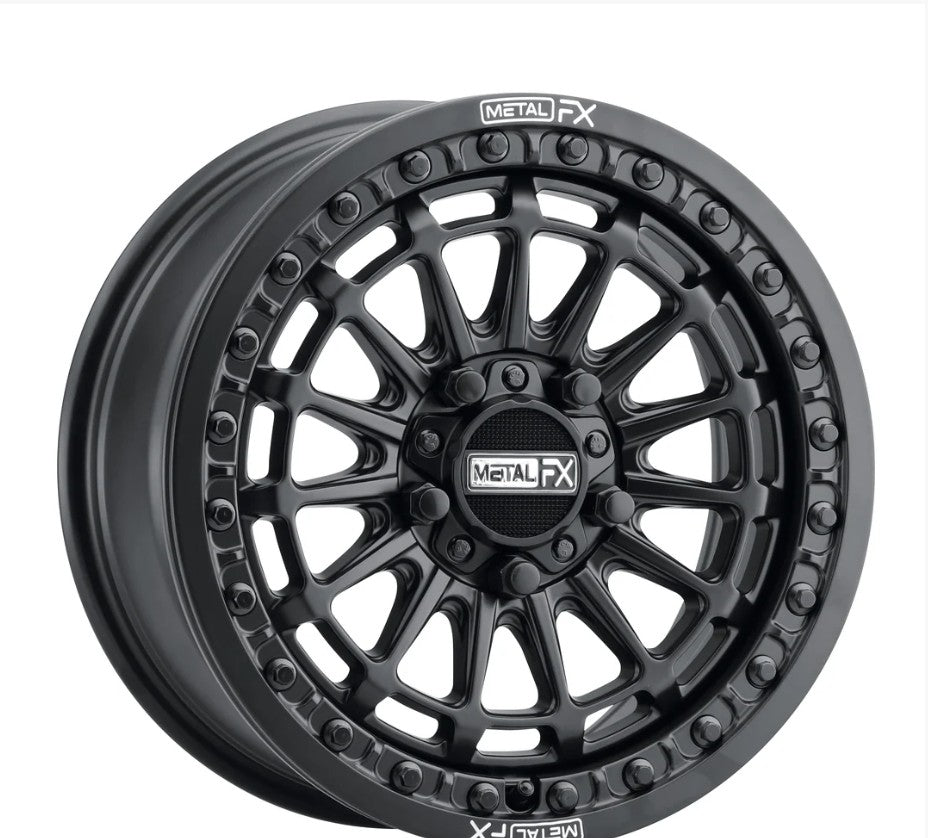

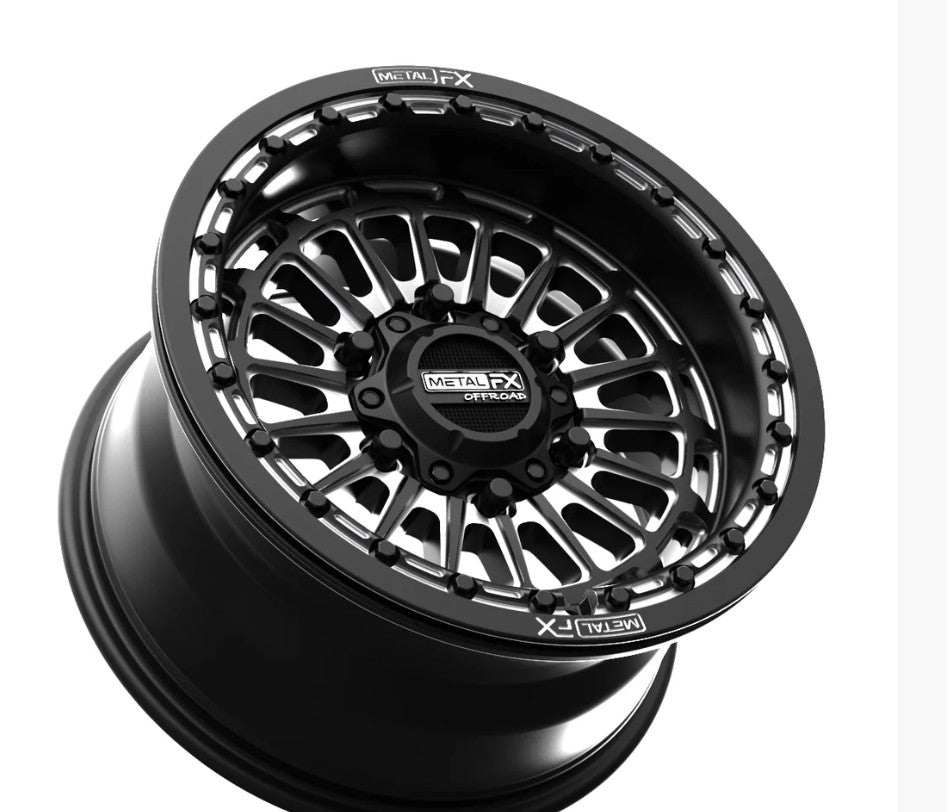

Metal FX Delta Wheels

The Metal FX Offroad Delta UTV Wheel combines our technical expertise with uncompromised attention to detail creating the ultimate in style and performance. The design of the Delta includes a unique concave center and a 6061-T6 Billet Beadlock for enhanced strength and durability.

- Super strong 6061-T6 Aluminum Beadlock Ring
- Lightweight 17lbs - 15x7 / 19lbs - 15x10
- Solid A356 Aluminum with T6 heat treatment construction
- Bolt on cap with embossed METAL FX Logo
- Hub centric fitments for common applications, clears Speed UTV Hubs

These wheels will fit the following machines:

4x136/4x137:
- Artic Cat Stampede
- Can Am Commander
- Can Am Defender
- Can Am Maverick
- Can Am Maverick X3
- Honda Pioneer 1000
- Honda Talon 1000

4x156:
- Arctic Cat Wildcat XX
- Kawasaki Mule PRO
- Kawasaki RIDGE
- Kawasaki Teryx KRX 1000
- Polaris ACE
- Polaris General
- Polaris Ranger
- Polaris RZR
- Speed UTV El Jefe
- Speed UTV Baja Bandit
- Yamaha Wolverine RMAX
- Yamaha YXZ 1000R (2019+)

These 5x4.5 wheels will fit the following machines:

Polaris:
- Ranger XD 1500
- RZR Pro R
- RZR Pro S
- RZR Turbo R
- Xpedition ADV
- Xpedition XP

Segway:
- Super Villain

CF Moto:
- U10 Pro

These 6x5.5 wheels will fit the following machines:

Can-Am:
- Maverick R (2024+)
- Maverick R X (2024+)
- Maverick R X RS (2024+)
- Maverick R Max (2025)
- Maverick R Max X (2025)
- Maverick R Max X RS (2025)

FITMENT
15x7 +38mm
These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

15x10+38mm
These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

15x7 +38mm Delta 6R w/ 35” Roxxillas
= 83” total width

15x10 +38mm Delta 6R w/ 35” Roxxillas
= 83” total width

15x7 +38mm Delta 6R w/ 33x10 SS360
= 79” total width

15x10 +38mm Delta 6R w/ 33x12 SS360
= 82” total width

If you’re looking for a narrower dirt setup, our 15x7 +61mm Outlaw 6R wheels measure 2” narrower in total width.
